1km Outdoor Fiber Optic Cable Drop FTTB Steel Wire 12 Conductors

Name: 1km Outdoor Fiber Optic Cable Drop FTTB Steel Wire 12 Conductors
Brand: UT-King
Price: 1 USD

Buy cheap 1km Outdoor Fiber Optic Cable Drop FTTB Steel Wire 12 Conductors product

Brand Name : UT-King

Model Number : GJYXCH

Certification : CE,ROHS,ISO9001

Place of Origin : china

MOQ : 1km

Payment Terms : T/T, Western Union

Supply Ability : 1000km /week

Delivery Time : 3-7days

Packaging Details : 1km/drum,2km/drum

Application : FTTH FTTB FTTX Network

Product name : FTTH Outdoor Drop Cable

Color : Black or Customized

Number of conductors : 1 or 2 or 4 or 6 or 8 or 12

Fiber type : G657A1

Fiber count : 1-12

Jacket : LSZH

Strength member : steel wire/FRP

Type : FTTH drop wire outdoor cable

Length : 1km or 2km

Oem : Available

Contact Now

UT-King GJYXCH Outdoor Optical Fiber Cable FTTH Fiber Optic Drop Cable

Description

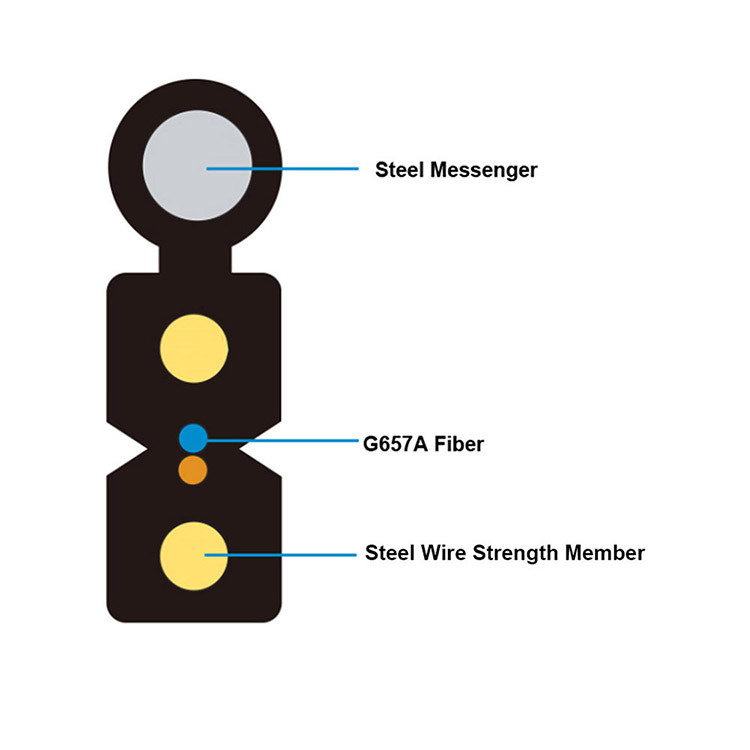

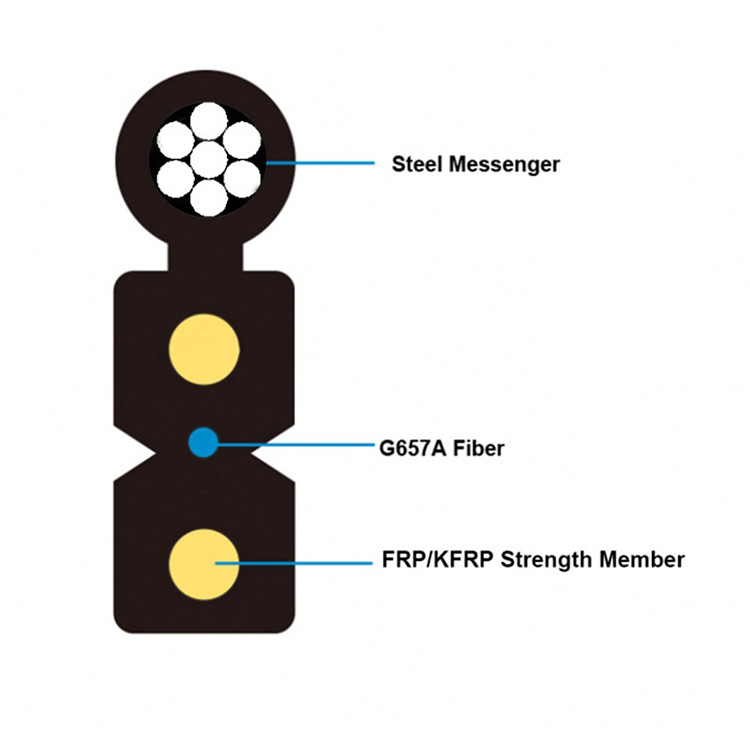

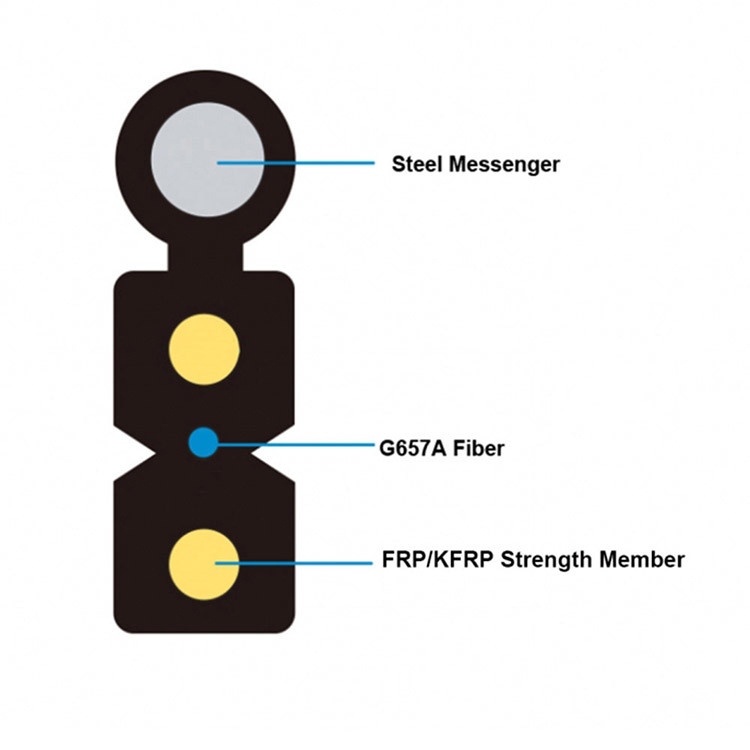

UT-King’s outdoor ftth drop cable used as connection part in last 1 kilometer between optical distribution point and users’ premise. Its compact structure provide the advantages of light weight and small size. In the middle of cable, it’s fiber, which can be 1-4 cores. On both sides, there’re two parallel steel wire(FRP) to strengthen tensile of cable; then, adding a self-supporting messenger. At last, sheathed with LSZH/PE/PVC material.

Features

Extreme smaller diameter, light weight, flexible, easily installed
Two parallel Steel or FRP line with excellent anti pressure performance to protect fiber core
Single extra steel wire make cable with strong tensile strength
Groove design of 8 type, easy to rip, install and maintain
Adopt the fiber core excellent than ITU G657 standard .657 st

Application

Used in access network or as access cable from outdoor to indoor in customer premises .
Used as access building cable in premises distribution system,
Especially used in indoor or outdoor aerial access cabling.

Specification

Item	1fiber		2fibers		4fibers
Self-support Strength Member Material	FRP/ Steel wire		FRP/ Steel wire		FRP/ Steel wire
Self-support Strength Member Diameter(mm)	1.0		1.0		1.0
Strength Member Material	Steel Wire		Steel Wire		Steel Wire
Cable Diameter(mm)	2.0*5.0		2.0*5.0		2.0*5.0
Sheath Thickness(mm)	≥0.40		≥0.40		≥0.40
Strength Member Diameter (mm)	0.4		0.4		0.4
Cable Weight(kg/km)	20		20.5		21.5
Operating Temperature Range(℃)	-50~+70		-50~+70		-50~+70
Tensile Strength Short/Long term(N/100mm)	2000/800		2000/800		2000/800
Crush Resistance Short/Long term(N/100mm)	2200/1000		2200/1000		2200/1000
Min. Bending Radius(mm)	120		120
Min bending radius(mm)	10/25		30/60
Outer sheath	PVC /LSZH/LLDPE More
Fiber count	1/2/4/8/12
Fiber Type	G657A1/G657A2/G652D
Attenuation	1310nm			1550nm
	Typical	Max		Typical		Max
	0.36/0.5 dB/km			0.22/0.4 dB/km

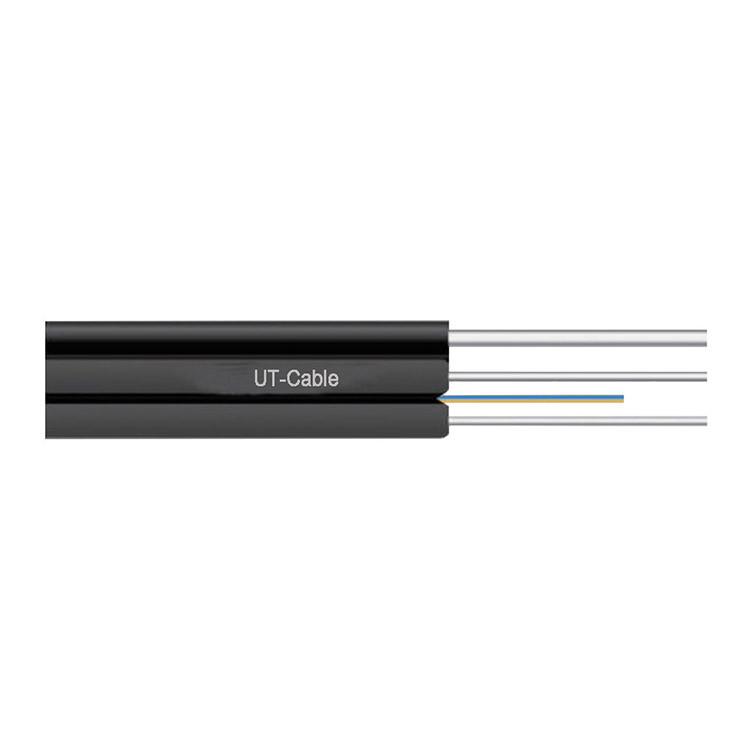

Detailed Images

1km Outdoor Fiber Optic Cable Drop FTTB Steel Wire 12 Conductors
